# DNA ID (2nd PC)

{% file src="<https://2327797330-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUQpGq4hslLFEswmgHH3a%2Fuploads%2FqOpfZvlazyCpw1qGD0g9%2FDMA-DNA-ID-main.zip?alt=media&token=2c5b1f9c-2245-4b0d-b34b-2e9a2cf4f3e7>" %}

1. Download the file and unzip the file above.
2. Connect JTAG port to 2nd PC (The port closest to the motherboard is the JTAG port, while the one farthest from it is the DATA port.)
3. Open the ch347>CH341PAR>SETUP.
4. Run the file and install the driver.\
   ![](https://2327797330-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUQpGq4hslLFEswmgHH3a%2Fuploads%2FnyPDqIC95RNQDBIupjii%2Fimage.png?alt=media\&token=54aca655-e8df-4ae4-acce-ee85c5c29d20)

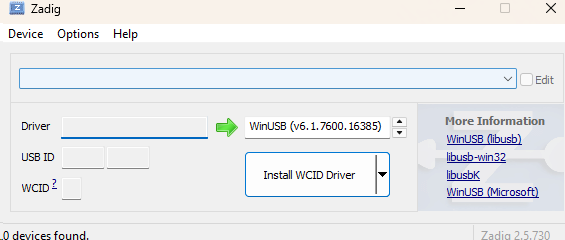

5. Open rs232>zadig-2.5,\
   And run the file.

<div align="left"><figure><img src="https://2327797330-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUQpGq4hslLFEswmgHH3a%2Fuploads%2FtfOYfRWTvsjqv2FhSRd0%2Fimage.png?alt=media&#x26;token=678cca95-3816-439c-8239-584e5b45da45" alt=""><figcaption></figcaption></figure></div>

6. Click Install

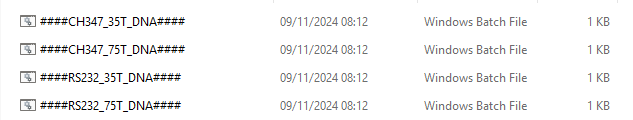

7. After Open DNA\_ID\
   And open either one of these files which match your dma card (e.g 75t or 25t)

<div align="left"><figure><img src="https://2327797330-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUQpGq4hslLFEswmgHH3a%2Fuploads%2FgtG1OhEhsn6YXl4Os2NP%2Fimage.png?alt=media&#x26;token=bc8cd98d-96be-473e-b222-30680e6e6366" alt=""><figcaption></figcaption></figure></div>

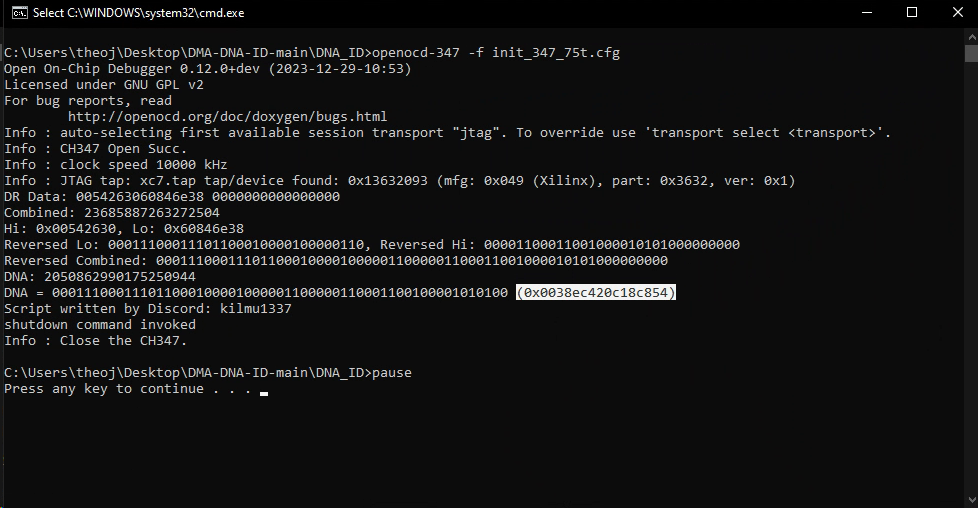

8. After running the file look for the text highlighted and copy and paste in your discord ticket to recieve your firmware.

<figure><img src="https://2327797330-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUQpGq4hslLFEswmgHH3a%2Fuploads%2FAegT9u7vCUrAo5XjJ5e2%2Fimage.png?alt=media&#x26;token=faded1cf-905f-475d-90dc-5912efd2ffb7" alt=""><figcaption></figcaption></figure>

Your dna id is highlighted above, copy and paste it into a ticket.

{% hint style="info" %}
If there are any issues, please see the [DMA Troubleshooting](https://huh-or-services.gitbook.io/divisionxguide/dma-card/troubleshooting) section before messaging support
{% endhint %}
